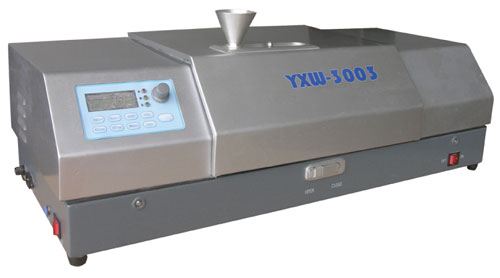

This instrument is our fourth-generation dry way laser particle size analyzer. It adopts the most rational structure and new dispersing parts, so the dispersing effectiveness is twice more than similar products. It adopts air as dispersing medium, and takes advantage of turbulence dispersing, high precision feed device, patented injection pump and oil free quiet gas resource to ensure the sample dispersed adequately. This instrument can be applied to all dry powder material, especially for the material which can react with water or change shape in liquid. The accuracy and repeatability is as well as wet-way laser particle size analyzer. And it is a perfect choice for high universities, research institute and mine-industrial enterprises for research, new products development, product testing and quality control.
|Technical Parameters||Analyzing range||YXW-3003A 0.1~300 µm
YXW-3003B 0.1~500 µm
|Dispersing way||Dry, turbulence dispersing|
|Accuracy error||< 3%|
|Repeatability error||< 3%|
|Power||AC 220V, 50Hz|
|Measurement (main instrument)||845mm×362mm×430mm|
|Analyzing speed||30 S|
|Number of channel||70 grade/ section|
|Laser||He-Ne; λ=632.8nm; p>2mw; lifetime>20000H|
|Application fields||Any solid particle|
|Operation mode||Manual / Auto|
Cement, ceramics, drug, coatings, dyestuff, pigments, fillers, chemical products, catalyst, abrasives, coal drst, mud and sand, dust, flour, foodstuff, additives, pesticides, explosives, graphite, photosensitive materials, fuel, metal and non-metal powders, calcium carbonate, china clay and other powdery material.
