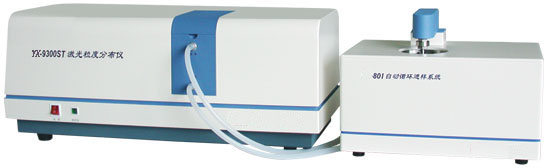

YX-9300ST laser particle size analyzer

YX-9300ST laser particle size analyzer for non-metallic powder has many automatic features including automatic testing, automatic optical calibration, automatic sample feeding, automatic water supply and drainage, automatically eliminating air bubble, automatic cleaning and so on. Summed up in one sentence, that is, as long as the sample added to the circle pool, you can get accurate test results. Moreover, its software system is more powerful and flexible, and makes this laser particle size analyzer highly automatic, much more convenient to use and performance better. It adopts imported semiconductor lasers of power, long life and good monochrome; using specially designed large-size high-sensitivity photodetector array by large-scale integrated circuit manufacturing process; sample feeding using centrifugal pumps and micro-sample pool. It adopts Milosevic Theory and the free distribution model as the data-processing methods. High-precision data transmission and processing circuitry and a series of advanced technologies and manufacturing processes are adopted to ensure the equipment accurate and reliable, high test speed, good repeatability, easy operation and so on. The set of particle size analyzer integrates laser technology, computer technology and photonics technology, is particularly suitable to be used by colleges and universities, research institutes and laboratory of large enterprise.

Technical Specification

1. Size range: 0.1µm-460µm
2. Sample feeding mode: Circulating pumpl
3. Repeatability error: ≤ 1%(for standard sample D50)
4. Accuracy of error: ≤ 1%(for standard sample D50)
5. Measuring principle: Milosevic Scattering Theory
6. Software running environment: Windows 2000, XP
7. Interface: RS232 or USB mode
8. Photodetectors: 80, 68 ahead、8 sidewards and 4 rearwards
9. Test time: Generaly 2-3 mins / times
10. Circulation pool volume: 500 ml
11. Circular traffic: 500-2500 ml/min
12. Gross weight: 35Kg
13. Dimension: 760x300x300mm
14. Ultrasonic Power: 50 Watt; Voltage 220V, 50/60 HZ

Application

1. Analyzing or sizing particle size of non-metallic powders such as calcium carbonate, talcum powder, kaolin, zirconium silicate, wollastonite, graphite, silica powder, tourmaline, mica, barite, plaster, bentonite, diamond, quartz, diatomite, feldspar, calamite, clay, garnet, vermiculite, Titanium white power, etc.
2. Analyzing or sizing particle size of metallic powder such as aluminum powder, iron powder, magnesium powder, molybdenum powder, copper powder, zinc powder, other rare metal power and varied alloy powder, etc.
3. Analyzing or sizing particle size of pharmaceutical, agricultural pesticide, grinding particle, foodstuff, scientific research, teaching, cement, ceramic, glass, chemical industry, military industry, soil, pigment, oil exploration, geological analysis, river silt and electronic particle, etc.

Features

1. 3D Automatic Focus System: under computer control, the central point of controller will find the focus lens and calibrate the background automatically.
2. Full Automatic standardized operation (SOP) Design: draining, cleaning, water and other operations are under the control of the computer automatically. The operations are simplified to one click (power up), one spoon (feeding sample), completing test.
3. Adopting full-sides photodetectors layout to ensure effective reception of scattering signal and increase analyzing of particle size range.
4. 801 automatic circulate decentralizing systems: including centrifugal circulation pump, ultrasonic scatter part, blender, water drainage systems. All operations are under automatic computer control to realize automatic and intellectual particle size testing.
