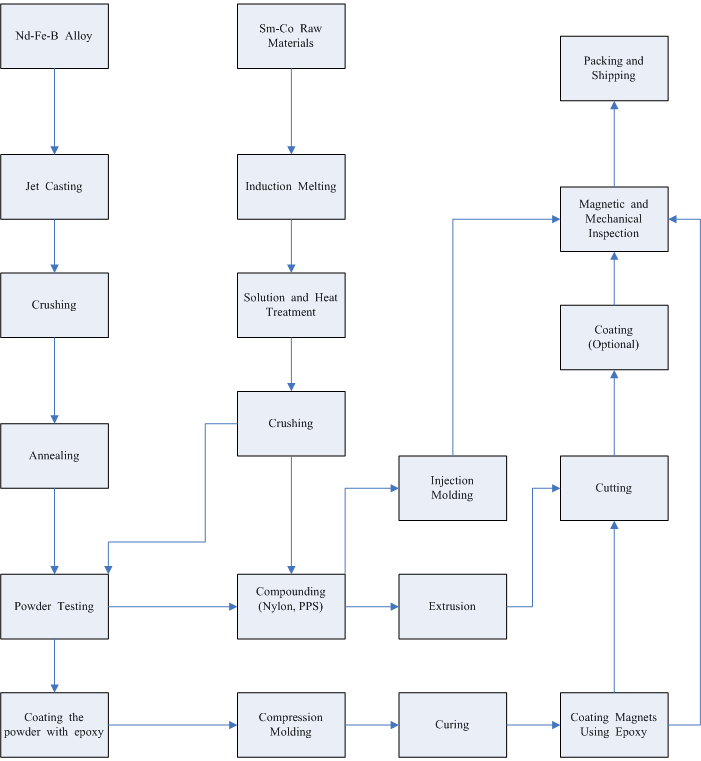

Polymer Bonded Magnet Product Line

Polymer Bonded Magnet Product Line

Technology of manufacturing rapid-quenched magnetic powders (RQMP) is offered based on methods of centrifugal atomization or spraying of melt followed by rapid
DESCRIPTION

Technology of manufacturing rapid-quenched magnetic powders (RQMP) is offered based on methods of centrifugal atomization or spraying of melt followed by rapid quenching on cooled shield. Centrifugal atomization, this technology, is providing the preparation of magnetic powders of wide variety of materials. BZMP (NdFeB powders) manufactured by new method are characterized by stable granulometry parameters, high-level of uniformity of alloying distribution in powder particles and fine-grained structure. This facilitates the forming the high coercivity condition of the material.

Common parameters:

Particle size: less than 400 mkm; Hci: 240 - 1300 kA/m; Br : 0.75 - 1.1 T; (BH)max: not less than 80 kJ/m3

Competitive advantages:

The centrifugal atomization for production of rapid-quenched magnetic powders (RQMP) is the only reliable alternative to Magnequench technology of melt spinning. Method of centrifugal atomization (CA) is featured by cheaper, simpler and more productive equipment than in spinning Magnequench (SM) technology.

  1. Productivity of centrifugal atomization (CA) 5-7 times as much as in spinning Magnequench (SM).
  2. Centrifugal atomization (CA) technology is free from processing problems inherent to spinning Magnequench (SM) technology
  3. Capability to control the thickness of flakes produced by centrifugal atomization (CA) method regardless of quenching rate, in comparison with spinning Magnequench (SM) methods, allows for obtaining the optimal quenched flakes in wide range of thickness (5 - 50 mkm) where nano-crystalline and amorphous powders can coexist
  4. Effective using the controlled crystallization annealing allows for obtaining powders of a wide combination of magnetic and other physical properties

50kg induction smelting furnace

50kg induction smelting furnace
50kg induction smelting furnace
Features:
  1. The smelting furnace gives higher yield.
  2. It starts up instantaneously thereby reducing the time to reach working temperature.
  3. The natural stirring helps in the uniform smelting.
  4. Smelting is cleaner.
  5. They can be installed even in the small place. Small furnace can provide high smelting rate. The small size with respect to melting rate results in the requirement of much less refractory than fuel-fired units.
  6. It is energy efficient, flexible operation.
Applications:

Refining of high purity magnet, metal and alloys; Electrodes for remelting; Casting of various engines; Foundries; Brazing; Iron and steel industry; Aluminum Industry etc.

Before purchasing induction smelting furnace you should bear following things in mind. Firstly you should be clear that for what purpose you are selecting the furnace. The size and width should depend on the area of its installation and the volume of work. For homogeneous melting there should be stirrer must you must ensure whether your furnace posses that feature or not. Induction heating process is a method in which the electrical conducting material is heated through by eddy currents induced by a varying electromagnetic field. The principle of the induction heating process is similar to that of a transformer.

100Kg Vacuum induction furnace

Vacuum induction furnace

100Kg Vacuum induction furnace

Vacuum induction furnace is a set of smelting equipment heating metal into melted state on the basis of intermediate frequency (IF) induction heating principle. It plays a very important role for science and research and many production sectors in smelting and casting such metals as nickel base and its special steel, exactitude alloy, high-temperature alloy, RE metal, active metal, copper and cuprum alloy, hydrogen-storage material, NdFeB, other magnetic materials under vacuum condition or protection atmosphere. Thyristor frequency device or IGBT frequency device can be selected to match together with IF power upon customer's particular requirement.

    Unit     Unit
Capacity 100 Kg Intermediate frequency rated 2500 Hz
Max work temperature 1600 Voltage for intermediate frequency 375 V
Ultimate vacuum degree 6×10-2 Pa Consumption of cooling water 9 m3/h
Pressure increasing rate 4 Pa/h Pressure for cooling water 0.3 MPa
Power for intermediate frequency rated 160 Kw Outline dimension
(L×W×H)
9.8×5.5×5.0 m

25Kg Vacuum induction furnace


Vacuum induction furnace
25Kg Vacuum induction furnace

Vacuum induction furnace is a set of smelting equipment heating metal into melted state on the basis of intermediate frequency (IF) induction heating principle. It plays a very important role for science and research and many production sectors in smelting and casting such metals as nickel base and its special steel, exactitude alloy, NdFeB, Dy metal, active metal, high-temperature alloy, hydrogen-storage material, other magnetic materials, etc. under vacuum condition or protection atmosphere. Thyristor frequency device or IGBT frequency device can be selected to match together with IF power upon customer's particular requirement.

    Unit     Unit
Capacity 25 Kg Intermediate frequency rated 2500 Hz
Max work temperature 1600 Voltage for intermediate frequency 375 V
Ultimate vacuum degree 6×10-2 Pa Consumption of cooling water 3.6-6 m3/h
Pressure increasing rate 4 Pa/h Pressure for cooling water 0.3 MPa
Power for intermediate frequency rated 50/100 Kw Outline dimension
(L×W×H)
4.8×4.0×2.5 m

Vacuum jaw breaker


Vacuum jaw breaker
Characteristics of Vacuum jaw breaker:
  • Size of feeding material : no more than 100mm.
  • Size of material at output: 15-20mm.
  • Throughput: 300-500kg/h.
  • Outline dimension: 1150x670x1390mm.
  • Weight:1200kg
  • Consumption Power: 5.5KW
Application of Vacuum jaw breaker:

Applicable for production line of NdFeB melt-spun(rapid quenched magnetic powders Feature: totally sealed and to be charged with Nitrogen during operation .



induction rapid quenching furnace

induction rapid quenching furnace
induction rapid quenching furnace

Electric arc rapid quenching furnace

Electric arc rapid quenching furnace
Electric arc rapid quenching furnace
Characteristics of Electric arc rapid quenching furnace:
  • Operating Process: vacuumizing, argon charging, 20 minutes in all..
  • Operating Charateristics: As soon as it is in operation, the material could be feeded automatically and continuously.
  • Weight: 1500KG
  • Required occupied area: 6 square meters.
  • production capacity : 200 kg/24hr
  • Usded in production for rapid tempered amorphous powders
Application of Electric arc rapid quenching furnace:

Usded in production for rapid tempered amorphous powders







Dynamic constant Crystalizing Furnace

Dynamic constant Crystalizing Furnace ZG-2
Dynamic constant Crystalizing Furnace ZG-2
Characteristics of Dynamic constant Crystalizing Furnace
  • Productivity: 400kg/day.
  • Working temperature: no more than 900 ºC
  • Vacuum degree: 5x10-3 Pa
  • Leakage speed: 7x10-1Pa/sec.
  • Power: 30KWT
  • Water consumption: 1.5t/h
  • Size of input powder: more than 20mkm
Application of Dynamic constant Crystalizing Furnace ZG-2:

Aimed to transform quickly tempered amorphous powders into crystal state .







Separator for magnetic powders

Separator for magnetic powd
Separator for magnetic powders
Characteristics of Separator for magnetic powders:
  • Productivity: 100kg/h
  • Power: 300wt
Application of Separator for magnetic powders:

Aimed to separate magnetic powders due to their magnetic characteristics


















SmCo induction smelting furnace

SmCo induction smelting furnace
SmCo induction smelting furnace
Summary of LZL-60 Hi-temp vacuum sintering furnace

LZL-60 Hi-temp vacuum sintering furnace is our latest developed rapid quenching sintereing equipment for powder metallurgy materials. It?s been developed based on the good points of sintering quenching equipments both from Russia and America, at the same time it adopts following techniques as hi-temp dual-chamber and double-cycle integration, high vacuum dynamic forced sealing, hi-precision heating on hi-temp and long constant temperature area, and hi-efficiency heat exchange controllable quenching. It is equipped with an extremely large high-temp and constant-temp working chamber, a smoothly moving lifting platform for material feeding at a high speed, a heater, equal-temp furnace pipe style anti-oxidation protection device, rapidly circulation cooling system specially for furnace body and rapidly circulation cooling system specially for products. This equipment is characterized with long usage service, high efficiency in production, high output, sound and uniform property for its final products, is an ideal choice for sintering and quenching SmCo or NdFeB alloy materials, hardness alloy materials and electronic materials (PTC,NTC,MLCC etc.), especially suitable for those companies that plan to carry out batch quantity production.

Main technical index
  1. Furnace style:vertical
  2. Inner diameter of furnace pipe:φ300
  3. Feeding quantity (excluding the weight of lifting platform, @1250℃):≥60Kg
  4. Ultimate vacuum degree:≤8×10-1Pa
  5. Pressure increase rate:≤1 Pa/h
  6. Operational temperature:≤1250℃
  7. Temperature controlling accuracy:±1?
  8. Descending time of lifting platform ≤ 1.5min
  9. Length of constant-temp area :≥600mm
  10. Uniformity of temperature at constant-temp area: ±2℃
  11. Total power:80KVA

Remark: other types of equipments available at our company include ZP-100 vacuum cooling casting furnace, XG-200 dynamic continuous crystallizing furnace, GZK-50TC vacuum rapid-quenched furnace, LZL-60 hi-temp vacuum rapid quenching sintered furnace, LD-200 vacuum heat treatment furnace, GQ-20TC vacuum rolling ball mill, PVD type parylene vacuum vapor-deposition equipment, vacuum heat treating machine, permanent magnet separator, strong magnet ore milling stick, strong magnet ore milling plate, automatic controlling system, etc. Above mentioned equipments can be widely used in processing or handling of magnetic materials, RE alloy, RE permanent magnet, NdFeB permanent magnet, NdFeB alloy, SmCo alloy, powder metallurgy, hardness alloy, electronic parts etc.

GQ-20TC Vacuum rolling ball mill

Summary of GQ-20TC Vacuum rolling ball mill

GQ-20TC Vacuum rolling ball mill is used to break and then pulverize materials by force of milling ball rolling, extruding and rubbing within vacuum or protective gas filled tank. Main characteristics: with a sifting screen equipped with together with the milling tank, powders can be obtained at the same time when ball milling is in process; strength of milled powders can be willingly controlled; particle sizes of the powders are in narrow range, turns to be in normal distribution, with granularity controllable; reliable vacuum protective function; easy-to-operate in material feeding and discharging. This equipment is suitable for making of special powders that requires particle size to be controllable and anti-oxidation can be obtained during process of powder milling, and it is also applicable for production of Melt-spun NdFeB powders and catalyzer powers.

Main technical index
  1. Vacuum Degree:≤10Pa
  2. Speed adjusting range:≤8~80r/min
  3. particle size range:0.05~0.3mm
  4. total power:5KW
  5. Capacity:30Kg/time

Remark: other types of equipments available at our company include ZP-100 vacuum cooling casting furnace, XG-200 dynamic continuous crystallizing furnace, GZK-50TC vacuum rapid-quenched furnace, LZL-60 hi-temp vacuum rapid quenching sintered furnace, LD-200 vacuum heat treatment furnace, GQ-20TC vacuum rolling ball mill, PVD type parylene vacuum vapor-deposition equipment, vacuum heat treating machine, permanent magnet separator, strong magnet ore milling stick, strong magnet ore milling plate, automatic controlling system, etc. Above mentioned equipments can be widely used in processing or handling of magnetic materials, RE alloy, RE permanent magnet, NdFeB permanent magnet, NdFeB alloy, SmCo alloy, powder metallurgy, hardness alloy, electronic parts etc.
